DFS4000

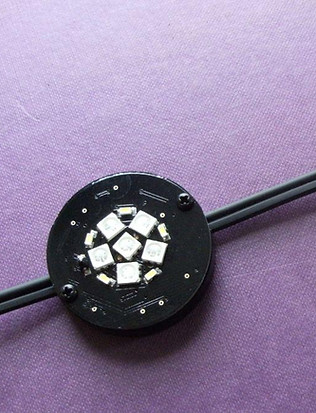

Principally for surface mounted applications DFS4000 offers a compact RGB / RGBW LED light source



LED units can be screwed or adhered to a surface  and the slim line two conductor cable runs along  the top or loops through the support surface

Details



 When looped through the support surface the cable is not visible from the front surface



Cable connection is automatic as the LED unit includes pins which pierce the cable insulation forming a connection as the LED assembly is fitted to the aluminium base



Up to 170 DFS4000 LED units can be controlled on a single cable



The system uses our advanced 13 bit system for super smooth dimming



An optional clear, smoked or white diffused cover can be fitted for an attractive stylish appearance

Main features

 • Robust aluminium base



 • Compact unit just 43mm diameter



 • Clear, smoked or white diffused cover options.



 • Available in three intensities



 • Available as single colour, RGB  or RGBW



 • Super smooth fading with linear LED current control (not            PWM)



 • Easy  installation  with  no  electrical connections



 • Up to 170 LED units controlled from a single power unit



 • Polarity insensitive



 • Protection included to prevent failure of                                      a single LED unit compromising the whole system



 • Designed and manufactured in the UK

Power unit

RM200 and RM500 power units provide the DC supply and combined power and data to control lamps or LED units



The power units accept DMX data converting this to the special combined power and data format



Power units have DMX record capability for standalone operation



They can also be programmed usingour show creation software



As with all Glasson Electronics products power units are designed and manufactured in-house

 • Protected from lamp wiring faults

 • DMX data input

 • DMX record/playback facility

 • Universal 90/264VAC input

 • Power consumption 260W (RM200) 600W (RM500) max

 • Comprehensive self diagnostic system



 • 100M max festoon cable length

 • Size 246 x 200 x 75mm (RM200) 230 x 300 x 75mm (RM500)



 • Weight 2.4Kg (RM200) 3.2Kg (RM500)



 • 40C maximum operating temperature

Handheld programmer

A commissioning and maintenance tool, the hand programmer facilitates quick programming of an LED / Lamp holder units address



For DFS1000 and 3000 the LED unit is briefly attached to the hand programmer to set the address



For DFS200 the lamp holder is temporarily inserted into the lamp socket in  place of the lamp



For Orbis, Praeclarus and DFS4000 a different version programs the LED unit address using a short range infra red link



The hand programmer can also read an LED units address and invoke an LED test



Programming typically takes 4 seconds
